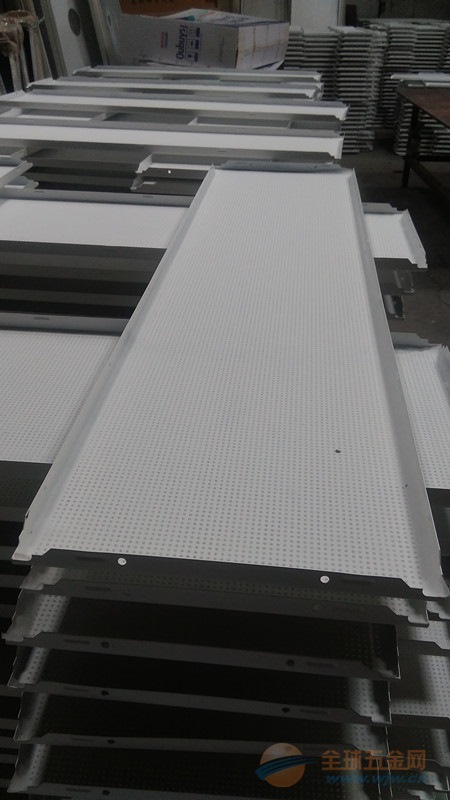

勾搭式镀锌钢吊顶采用X质双面镀锌钢为基材，通过人工折弯而成，其结构简单，主要由板面、勾边和搭边组成，勾边是勾住龙骨的一边，它起到主要的固定作用，搭边是搭在相邻板的勾边上面，分担着板子的重量，同时也保持与相邻板的密拼性。
勾搭式镀锌钢吊顶特有的镀锌钢制面板具有X越的抗冲击能力及弹性，其柔韧性极好，平整度高，抗风压，抗震动，强度高，不易变形。勾搭式镀锌钢吊顶安装简单，一般为单向平行龙骨勾搭式结构，板与板之间的拼接通过龙骨有次序搭折在一起，板边X特的勾搭设计，能很好的控制板与板之间的活动性，从而确保了板与板之间的缝隙密封平整。
Carrying type galvanized steel ceiling is made of high quality galvanized steel as substrate material, formed by the artificial bent, with its simple structure, mainly composed of a plate surface, crochet and lapping, crochet hook is one side of the keel, it plays the main role in fixed edge, is resting on the adjacent plate edges above, sharing the weight of the board, while also maintaining a close fight with adjacent plates.
Galvanized steel plate with special type galvanized steel ceiling has impact resistance and superior elasticity, excellent flexibility, high smoothness, wind resistance, shock resistance, high strength, not easy to deformation. Carrying type galvanized steel ceiling installation simple, generally parallel with the keel type structure, connection between the board and the board by order of a fold keel together with the unique design of side plate, can activity between the control board and the board is very good, so as to ensure that the gap between the board and the board of the seal formation.
◆镀锌钢制面板，强度高，柔韧性好，不易变形
◆平整度更高，防火性能更好
◆勾搭设计，安装更牢固、更密拼，确保板与板之间缝隙密封平整
◆规格尺寸、厚度可定制，满足工程的实际需要
◆非常出色的耐腐蚀性，抵抗潮湿环境、紫外线
◆抗静电，不吸尘，易请洗
◆冲孔勾搭式镀锌钢吊顶贴上无纺布，可以达到良好吸热、消音效果
◆无毒无味，环保，100%可回收
The galvanized steel plate, high strength, good flexibility, not easy to deformation
The high flatness, better fire performance
The design with more reliable and more dense, installed together, ensure the gap between the board and the board flat seal
The size, thickness can be customized to meet the actual needs of the project
The excellent corrosion resistance, moisture resistance, ultraviolet radiation environment
The antistatic, no dust, easy to wash
The punching up type galvanized steel ceiling with non-woven fabrics, can achieve good heat absorption and silencing effect
The non-toxic tasteless, environmental protection, 100% Recyclable
材质：X质双面镀锌钢板
宽度：300-1200mm
长度：300-1500mm
厚度：0.4-1.5mm
板边形式：勾搭式
板面形式：平面、冲孔（圆孔、柳叶孔）
成型方式：机械数控折弯
表面处理：静电粉末喷涂、热转印木纹、滚涂、覆膜、氟碳、油漆
龙骨：勾搭式龙骨
Material: high quality galvanized steel
Width: 300-1200mm
Length: 300-1500mm
Thickness: 0.4-1.5mm
The edges of the plate form with type:
Panel type: plane, punching (round hole, Liu Yekong)
Molding: CNC bending machine
Surface treatment: electrostatic powder spraying, heat transfer wood grain, roll coating, laminating, fluorocarbon, paint
Keel: up type keel
1、室内吊顶
2、机房吊顶
3、学生公寓、公共食堂
4、汽车4S店
5、写字楼、办公室、会议室
6、购物商场，休闲场所，高X会所
7、机场，地铁站，车站
8、公共休闲场所等开放式场所
1, indoor ceiling
2, room ceiling
3, student apartments, public canteens
4, car 4S shop
5, office, office, conference room
6, shopping malls, leisure places, senior clubs
7, airport, subway station, station
8, open places such as public leisure places
